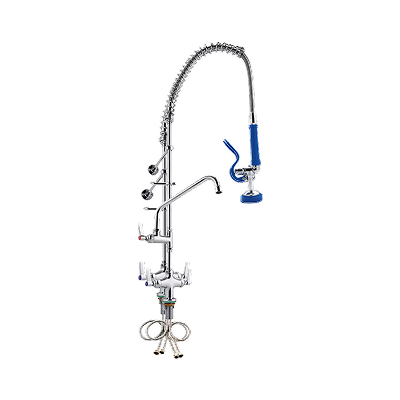

Deck mounted type (P-113-ADF12-B)

Single Hole, Hot & Cold water, 8” centers, add-on faucet with 12" swing nozzIe, SS304 Pre-rinse Faucet, Brass body

• 19.7" (500 mm) + 2" (50 mm) riser
• 37.5" (950 mm) flexible stainless steel hose + spray valve + finger hook
• 11.4" (290 mm) wall bracket (Can be cut to any size)
• The product includes check valve to prevent cross-flow
• The faucet has passed the EN 200 and EN 817 tests

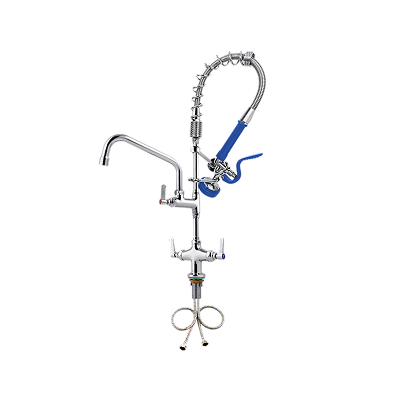

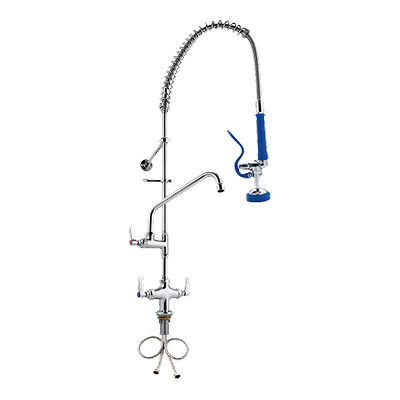

Deck mounted type (P-0113-ADF10-MINI)
Single hole (hot and cold)
Easy instaII add-on faucet with 10" swing nozzIe
3.7" (95 mm) + 2" (50 mm) riser
17.7" (450 mm) flexible stainless steel hose + spray valve + finger hook
11.4" (290 mm) wall bracket (Can be cut to any size)
Maximum height 25.8" (655 mm)
The product includes check valve to prevent cross-flow
The faucet has passed the EN 200 and EN 817 tests

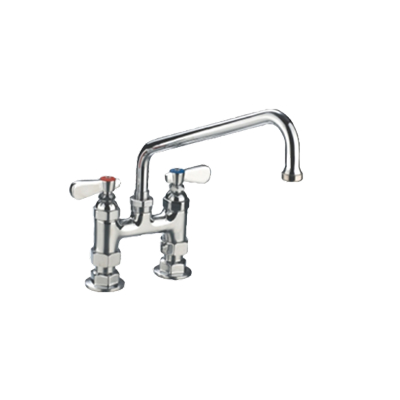

Deck-mounted pantry faucet (P-0225)
4" (102mm) centers
Dual hole (hot and cold)
Swing nozzle with 12" (305mm) length
Body: 304 stainless steel

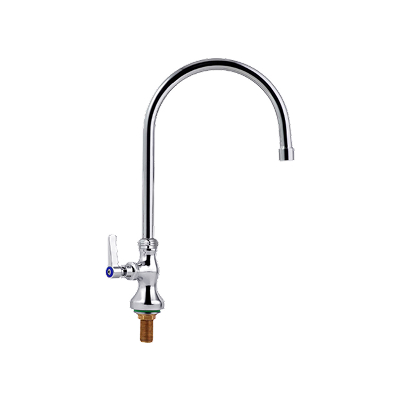

Deck mounted pantry faucet (P-0305)
Single hole, single temperature (cold)
Gooseneck with 8" (203 mm) length
Body: 304 stainless steel

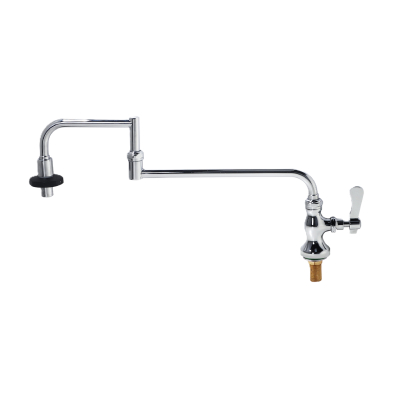

Deck Mounted Pot Filler Faucet (P-0590)
Single hole, single temperature
G1/2” male inlet
18" (458 mm) double-joint nozzle
Heat-resistant on-off volume control
grip on nozzle end
Tailpiece and nut for connection included
Other sizes / lengths available

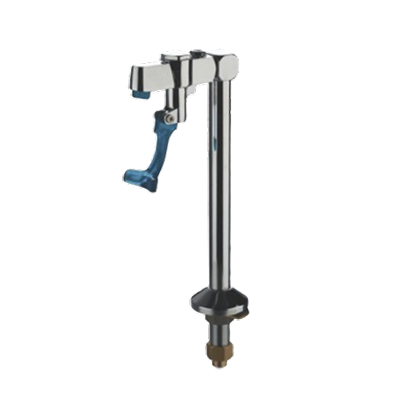

Pedestal Glass Filler (P-GFP-1)
Push-back arm (translucent blue) with instant shut-off.
Built-in volume regulator and adjustable mounting flange.
8" (203mm) height from flange base to water outlet.
1/2" IPS male shank, 2" in length.

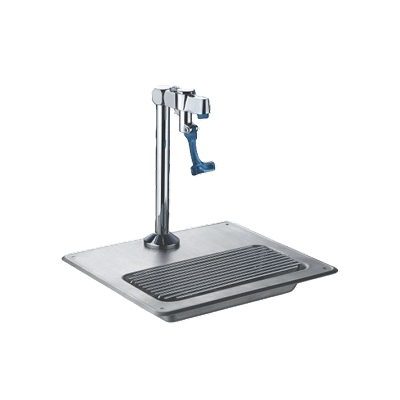

Water Station (P-WS-1)
Large 10-1/2" x 12-1/2" (267mm x 318mm) surface area.
Constructed from heavy-duty one-piece 18-gauge stainless steel (custom heights available).
Push-back style with 8" (203mm) clearance from pan to tip.
Features a 2-1/4" diameter grid drain to prevent splashing.
Includes a 1-1/4" x 4" long, 17-gauge tailpiece for waste connection.
Coupling nut and1/4" sweat tailpiece for copper tubing.

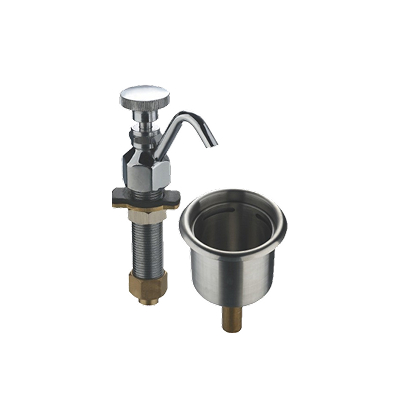

Dipperwell Faucet and Bowl (P-DW-F)
Sanitizes ice cream scoops and paddles.
Faucet Dimensions:
5-3/4" total height
1-3/8" height above table
1/16" solder inlet
Stainless steel construction; sits flush with counter.
4" (102mm) length of 1-1/2" (38mm) brass tubing for drainage.
Designed for rapid, easy flow.

Glass Rinser

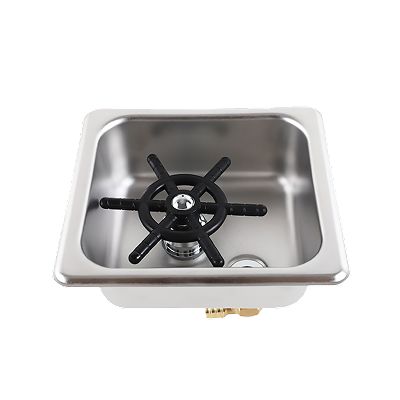

High-pressure Glass Rinser (P-GR1)
Pan Dimensions: 176 x 162 x 62D mm
Cut out Dimensions: 156 x 142 mm
Made of thick 304 stainless steel G1/2"
Brass threaded inlet with fittings
Hose barb outlet

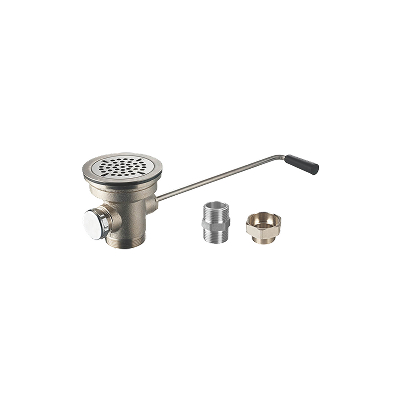

Waste Drain (P-WD-1)

Outlet Material: Bright nickel plated cast bronze body,
stainless steel face flange.
Strainer and handle; Neoprene head gasket
Outlet 2′′ supplied with adaptor to 1.5′′
Sink Opening: 89mm (3-1/2′′)
Face Flange Diameter: 114mm (4-1/2′′)
Handle Length: 305mm (12′′)
Without overflow

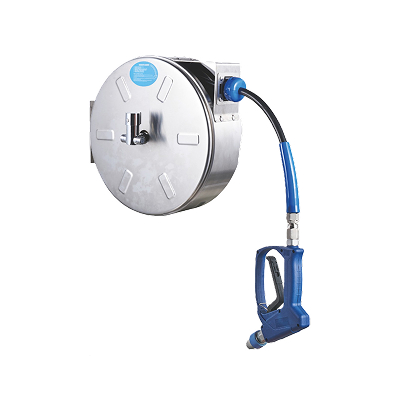

Hose Reels (PHRC-SS-10)
Stainless steel hose reel, round, close with spray valve
304 stainless steel inlet shaft
The water gun has a 304 stainless steel joint that rotates 360 ̊
Spray gun with hand protector and adjustable nozzle, allowing fine spray to a powerful jet stream
Non-marking hose with grade 70 steel wire withstands pressure up to 60MPa (600bar)
Hose: inner diameter 10mm / outer diameter 16.5mm

Epoxy coated carbon steel hose reel, square, close with spray valve
304 stainless steel inlet shaft

The water gun has a 304 stainless steel joint that rotates 360 ̊
Spray gun with hand protector and adjustable nozzle, allowing fine spray to a powerful jet stream
Non-marking hose with grade 70 steel wire withstands pressure up to 60MPa (600bar)
Hose: inner diameter 10mm / outer diameter 16.5mm

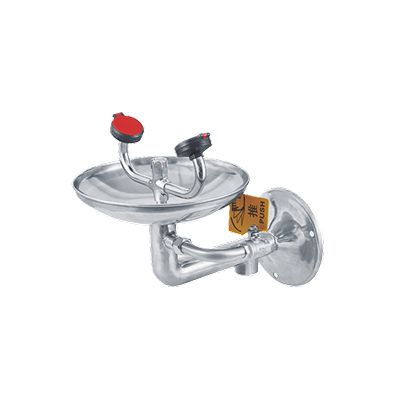

Wall mounted eye/ face wash,
stainless steel receptor
